Gaussian type 100GHz DWDM AAWG

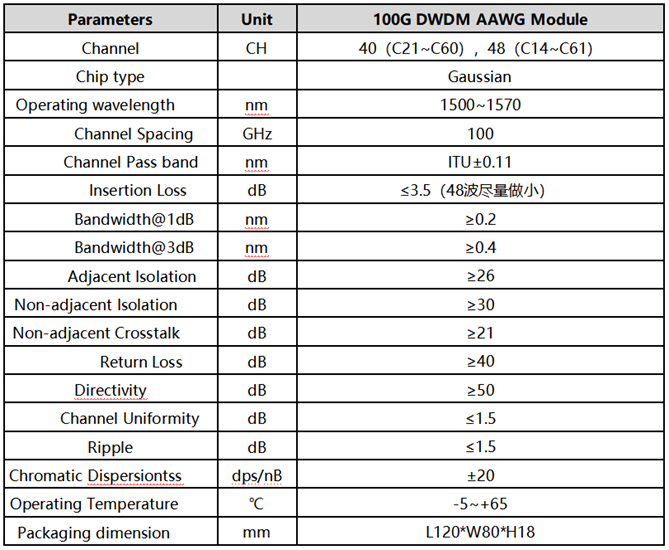

Channel Count : 48CH DWDM (C14~C61) + 1CH CWDM 1510nm

Channel Spacing : 100GHz

Insertion Loss : ≤3.5dB

Adjacent Isolation : ≥26dB

Contact Now

Gaussian type 100GHz DWDM AAWG

Product Overview

The Gaussian 100GHz DWDM AAWG module integrates 48 DWDM channels (C14~C61) and a 1510nm CWDM upgrade terminal, using a compact ABS package. All interfaces are equipped with LC/UPC connectors.

Core Product Features

Gaussian type 100GHz DWDM AAWG

48CH DWDM (C14~C61) + 1CH CWDM 1510nm design
100GHz channel spacing, Gaussian AAWG structure
Insertion loss IL≤3.5dB
Adjacent isolation ≥26dB, non-adjacent isolation ≥30dB
LC/UPC interface, 0.9mm fiber optic loose tube
ABS package size 120×80×18mm, supports customized fiber length

Gaussian type 100GHz DWDM AAWG

Application Scope

100G integrated wavelength division multiplexing systems
DWDM dense wavelength division multiplexing transmission systems
Metropolitan area network, backbone network and access network expansion
Data center interconnection DCI (Digital Coaxial Interconnection) optical transmission equipment and wavelength division multiplexing (WDM) system integration; CWDM/DWDM hybrid wavelength division upgrade solution; high-capacity multi-wavelength fiber optic communication system.

Product Tags:

100GHz DWDM AAWG module

Gaussian type DWDM Mux Demux

DWDM AAWG with 100GHz spacing

Gaussian type 100GHz DWDM AAWG Images
